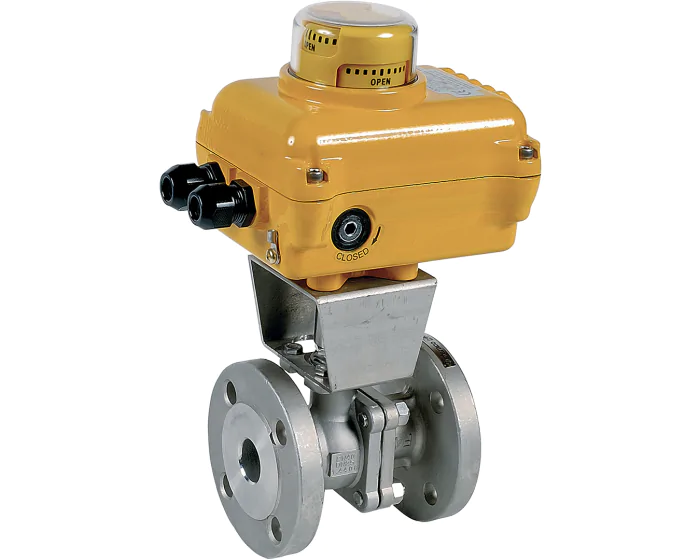

The split-body 763 ball valve has a stainless steel 1.4408 body and ball and PTFE/glass seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 200°C. Flanges PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN150 - 6'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 350.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Power (W) | 90 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 60 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 29.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category II |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 15 | 274362023010 | S1006184 |
€617.29
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 20 | 274363023010 | S1006185 |
€626.91
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 25 | 274364023010 | S1006186 |
€642.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 25 | 274364023011 | S1006187 |
€642.84
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 32 | 274365023010 | S1006188 |
€689.51
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 32 | 274365023011 | S1006189 |
€689.51
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 40 | 274366023010 | S1006190 |
€745.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 40 | 274366023011 | S1006191 |
€745.74
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 80 | 274369023130 | S1006194 |
€1,722.56
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 100 | 274370023150 | S1006195 |
€2,163.30
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 125 | 274371023150 | S1006196 |
€2,852.63
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body 150 | 274372023180 | S1006197 |
€4,045.24
(excl. btw)
|
add to cart |
